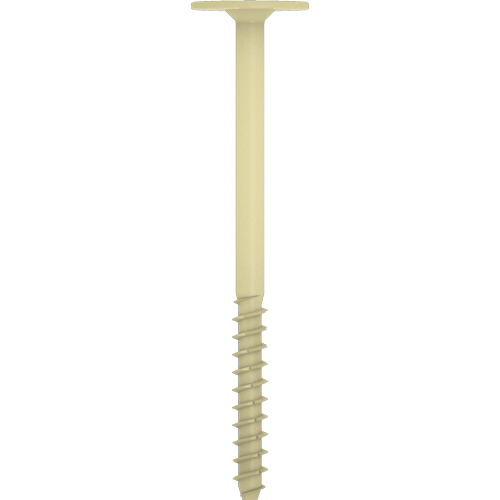

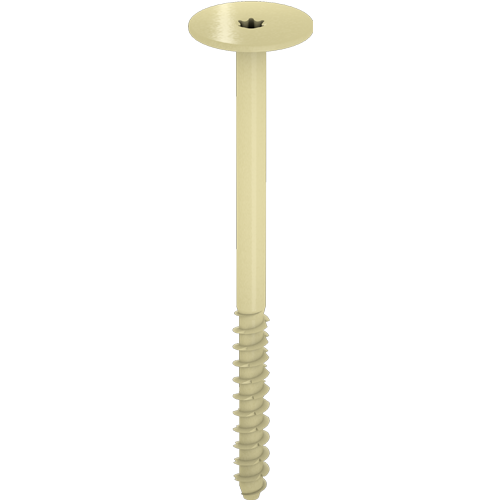

EJOT® DDS-ZB
Especificaciones
-
Aplicaciones
- For a secure fastening of ceiling and acoustic boards
- With German DIBt approval
- Recommended substrate: Concrete
-
Características
- For installation in cracked and non-cracked concrete
- Steel screw with duplex coating and self-tapping thread for reliable fastening
- Corrosion resistance classification C1-C3
- Easy installation: drill, fasten, done
- Minimal embedment depth
- Standard screw head colour: beige
-
Datos técnicos
- Head diameter: 24 mm
- Drill hole diameter: 6 mm
- Drill hole depth h1 ≥: 35mm
- Embedment depth hef ≥: 25 mm
- Screw drive: TX30
- Recommended substrate: Concrete
- Building material class: A2
- Corrosion resistance classification: C1 - C3
- DIBt approval: Z-21.8-1980
Characteristic load:- Cracked and uncracked normal weight concrete C 20/25 - C 50/60 NRK<7sub>: 0.9 kN
*For further technical specification, please refer to the relevant technical data sheet.
Filtro
Filtros seleccionados
| Descripción | Nº de artículo | Modo de construcción | Anclaje atornillado/golpeo | Color | Profundidad empotrado hef≥ | Unidades | |
|---|---|---|---|---|---|---|---|
| EJOT DDS-ZB 135 | 5929135691 | Solo para fijación en superficie | Anclaje atornillado | 25.0 | 35.0 | ||
Datos técnicos
|
|||||||
| EJOT DDS-ZB 250 | 5929250691 | Solo para fijación en superficie | Anclaje atornillado | 25.0 | 35.0 | ||
Datos técnicos
|
