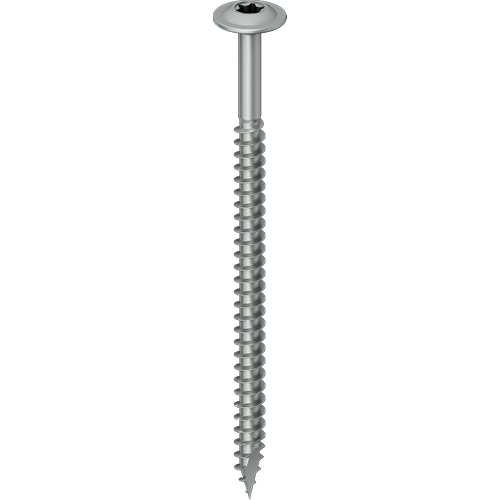

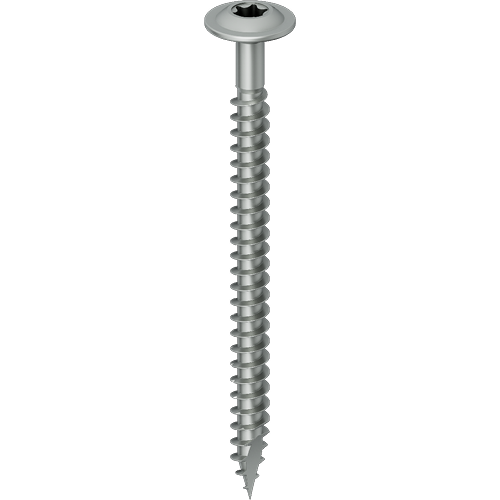

T-FAST® plus wood screw JW4 wafer head
Especificaciones
-
Aplicaciones
- Fastening of non-pre-drilled or pre-drilled components made of wood, wood-based material and pre-drilled and pre-set steel components to non-pre-drilled or pre-drilled components made of solid wood, solid structural timber (KVH), glued-laminated timber (BSH), solid wood panels, laminated veneer lumber (LVL), wood-based panels or cross-laminated timber
- For weathered areas
- Suitable for universal application
-
Características
- Stainless steel CRC II or stainless steel A2 with dry lubricant
- Wafer head (STS) for strong tightening during installation and increased holding forces after installation
- Full and partial thread
- Optimised thread geometry for improved prevention of screw over-tightening with short screws and accelerated processing with long screws
- T-FAST® Plus point geometry facilitates the screwing-in process through quick point biting, low screwing-in torque and efficiently reduced wood splitting
-
Datos técnicos
- Diameter: 6,0 + 8,0
- Diameter wafer head: 14,0 -2 1,0
- Drive: TX30 - TX40
Filtro
Filtros seleccionados
| Descripción | Nº de artículo | Diámetro mm | Longitud mm | longitud de la rosca mm | Longitud cabeza mm | Accionamiento | Unidades |
|---|---|---|---|---|---|---|---|
| JW4-2-Plus-STS-6,0X40/35 S TX30 | 3820000483 | 6.0 | 40.0 | 35.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STS-6,0X60/52 S TX30 | 3820000484 | 6.0 | 60.0 | 52.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STS-6,0X80/70 S TX30 | 3820000485 | 6.0 | 80.0 | 70.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STS-6,0X100/80 S TX30 | 3820000486 | 6.0 | 100.0 | 80.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STS-8,0X60/50 M TX40 | 3820000487 | 8.0 | 60.0 | 50.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STS-8,0X80/70 M TX40 | 3820000440 | 8.0 | 80.0 | 70.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STS-8,0X100/80 M TX40 | 3820000446 | 8.0 | 100.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STS-8,0X120/80 M TX40 | 3820000455 | 8.0 | 120.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
