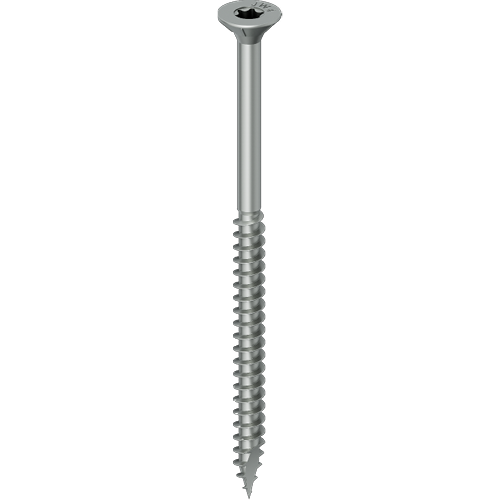

T-FAST® plus wood screw JW4 countersunk head
Especificaciones
-
Aplicaciones
- Fastening of non-pre-drilled or pre-drilled components made of wood, wood-based material and pre-drilled and pre-set steel components to non-pre-drilled or pre-drilled components made of solid wood, solid structural timber (KVH), glued-laminated timber (BSH), solid wood panels, laminated veneer lumber (LVL), wood-based panels or cross-laminated timber
- For weathered areas
- Suitable for universal application
-
Características
- Stainless steel CRC II or stainless steel A2 with dry lubricant
- Countersunk (STR) head with milling ribs on the underside makes it easier to countersink the head for surface-fixed installation
- Partial thread for tightening the components to be fastened
- Optimised thread geometry for improved prevention of screw over-tightening
- T-FAST® Plus point geometry facilitates the screwing-in process through quick point biting, low screwing-in torque and efficiently reduced wood splitting
-
Datos técnicos
- Diameter: 4,5 - 6,0
- Diameter countersunk head: 9,0 - 12,0
- Drive: TX20 + TX30
Filtro
Filtros seleccionados
| Descripción | Nº de artículo | Diámetro mm | Longitud mm | longitud de la rosca mm | Longitud cabeza mm | Accionamiento | Unidades |
|---|---|---|---|---|---|---|---|
| JW4-2-Plus-STR-4,5X50/30 S TX20 | 3820000466 | 4.5 | 50.0 | 30.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-4,5X60/35 S TX20 | 3820000467 | 4.5 | 60.0 | 35.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-4,5X70/40 S TX20 | 3820000468 | 4.5 | 70.0 | 40.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-4,5X80/40 S TX20 | 3820000469 | 4.5 | 80.0 | 40.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-5,0X50/30 S TX20 | 3820000470 | 5.0 | 50.0 | 30.0 | 10.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-5,0X60/35 S TX20 | 3820000471 | 5.0 | 60.0 | 35.0 | 10.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-5,0X70/40 S TX20 | 3820000472 | 5.0 | 70.0 | 40.0 | 10.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-5,0X80/40 S TX20 | 3820000473 | 5.0 | 80.0 | 40.0 | 10.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-5,0X90/45 S TX20 | 3820000474 | 5.0 | 90.0 | 45.0 | 10.0 | TX20 | 100 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-5,0X100/60 S TX20 | 3820000475 | 5.0 | 100.0 | 60.0 | 10.0 | TX20 | 100 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-5,0X120/70 S TX20 | 3820000476 | 5.0 | 120.0 | 70.0 | 10.0 | TX20 | 100 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-6,0X50/30 S TX30 | 3820000477 | 6.0 | 50.0 | 30.0 | 12.0 | TX30 | 200 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-6,0X60/35 S TX30 | 3820000478 | 6.0 | 60.0 | 35.0 | 12.0 | TX30 | 200 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-6,0X70/40 S TX30 | 3820000479 | 6.0 | 70.0 | 40.0 | 12.0 | TX30 | 200 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-6,0X80/40 S TX30 | 3820000480 | 6.0 | 80.0 | 40.0 | 12.0 | TX30 | 200 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-6,0X90/45 S TX30 | 3820000481 | 6.0 | 90.0 | 45.0 | 12.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW4-2-Plus-STR-6,0X100/60 S TX30 | 3820000482 | 6.0 | 100.0 | 60.0 | 12.0 | TX30 | 100 |
Datos técnicos
|
