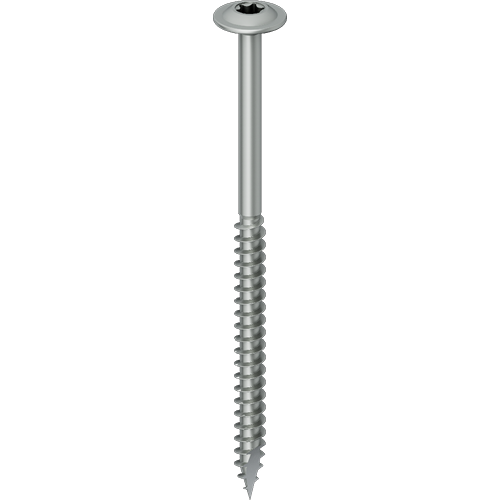

T-FAST® plus wood screw JW2 wafer head
Especificaciones
-
Aplicaciones
- Fastening of non-pre-drilled or pre-drilled components made of wood, wood-based material and pre-drilled and pre-set steel components to non-pre-drilled or pre-drilled components made of solid wood, solid structural timber (KVH), glued-laminated timber (BSH), solid wood panels, laminated veneer lumber (LVL), wood-based panels or cross-laminated timber
- For non-weathered areas
- Suitable for fastening over-rafter insulation systems
- Ideal solution for fixing rafters onto purlins
-
Características
Carbon steel with zinc-plated surface and dry lubricant
- Wafer head (STS) for strong tightening during installation and increased holding forces after installation

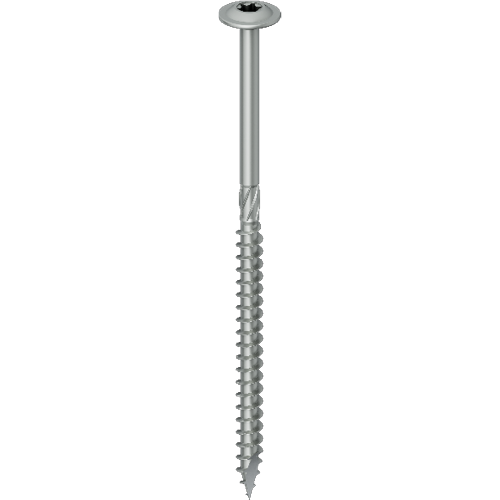

- The end mill at the transition to the non-threaded fastener shaft reduces the installation torque and simplifies the installation process
- Full and partial thread
- Optimised thread geometry for improved prevention of screw over-tightening with short screws and accelerated processing with long screws
- T-FAST® Plus point geometry for fast point biting and efficient reduction of wood splitting enables fast processing
-
Datos técnicos
- Diameter: 6,0 + 8,0
- Diameter wafer head: 14,0 + 21,0
- Drive: TX30 - TX40
- Shaft mill
Filtro
Filtros seleccionados
| Descripción | Nº de artículo | Diámetro mm | Longitud mm | longitud de la rosca mm | Longitud cabeza mm | Accionamiento | Unidades |
|---|---|---|---|---|---|---|---|
| JW2-2-Plus-STS-6,0X40/35-V S TX30 | 3820000433 | 6.0 | 40.0 | 35.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-6,0X60/52-V S TX30 | 3820000434 | 6.0 | 60.0 | 52.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-6,0X80/70-V S TX30 | 3820000435 | 6.0 | 80.0 | 70.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-6,0X100/80-V S TX30 | 3820000436 | 6.0 | 100.0 | 80.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-6,0X120/70-V M TX30 | 3820000437 | 6.0 | 120.0 | 70.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-6,0X140/70-V M TX30 | 3820000438 | 6.0 | 140.0 | 70.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-6,0X160/70-V M TX30 | 3820000439 | 6.0 | 160.0 | 70.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-6,0X180/70-V M TX30 | 3820000233 | 6.0 | 180.0 | 70.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-6,0X200/70-V M TX30 | 3820000441 | 6.0 | 200.0 | 70.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-6,0X220/70-V M TX30 | 3820000442 | 6.0 | 220.0 | 70.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-6,0X240/70-V M TX30 | 3820000443 | 6.0 | 240.0 | 70.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-6,0X260/70-V M TX30 | 3820000444 | 6.0 | 260.0 | 70.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-6,0X280/70-V M TX30 | 3820000445 | 6.0 | 280.0 | 70.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-6,0X300/70-V M TX30 | 3820000246 | 6.0 | 300.0 | 70.0 | 14.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X50/40-V M TX40 | 3820000447 | 8.0 | 50.0 | 40.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X60/50-V M TX40 | 3820000448 | 8.0 | 60.0 | 50.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X80/70-V M TX40 | 3820000449 | 8.0 | 80.0 | 70.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X100/80-V M TX40 | 3820000450 | 8.0 | 100.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X120/80-V M TX40 | 3820000451 | 8.0 | 120.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X140/80-V M TX40 | 3820000452 | 8.0 | 140.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X160/80-V M TX40 | 3820000453 | 8.0 | 160.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X180/80-V M TX40 | 3820000454 | 8.0 | 180.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X200/80-V M TX40 | 3820000234 | 8.0 | 200.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X220/80-V M TX40 | 3820000456 | 8.0 | 220.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X240/80-V M TX40 | 3820000457 | 8.0 | 240.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X260/80-V M TX40 | 3820000458 | 8.0 | 260.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X280/80-V M TX40 | 3820000459 | 8.0 | 280.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X300/80-V M TX40 | 3820000460 | 8.0 | 300.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X320/80-V M TX40 | 3820000461 | 8.0 | 320.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X340/80-V M TX40 | 3820000462 | 8.0 | 340.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X360/80-V M TX40 | 3820000488 | 8.0 | 360.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X380/80-V M TX40 | 3820000464 | 8.0 | 380.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STS-8,0X400/80-V M TX40 | 3820000465 | 8.0 | 400.0 | 80.0 | 21.0 | TX40 | 50 |
Datos técnicos
|
