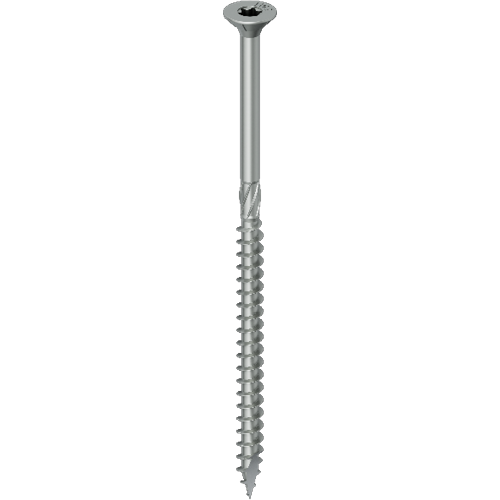

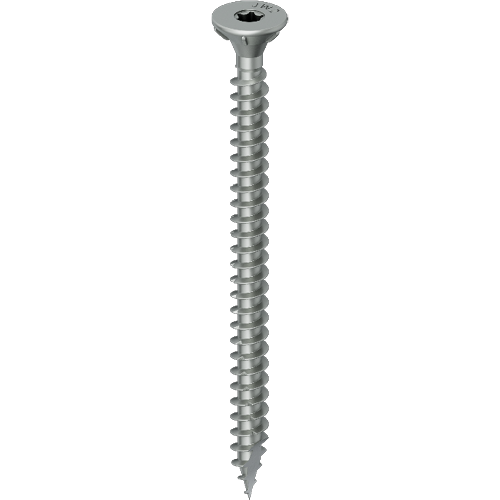

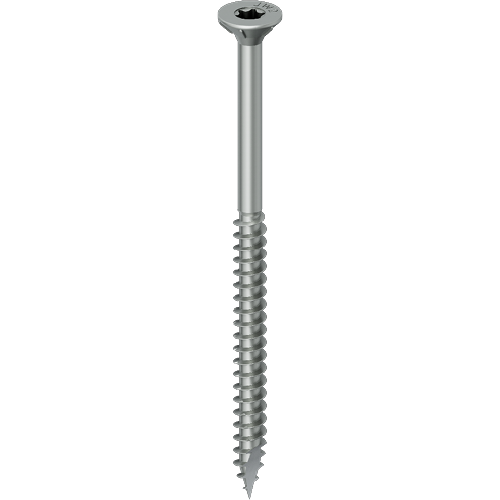

T-FAST® plus wood screw JW2 countersunk head
Especificaciones
-
Aplicaciones
- Fastening of non-pre-drilled or pre-drilled components made of wood, wood-based material and pre-drilled and pre-set steel components to non-pre-drilled or pre-drilled components made of solid wood, solid structural timber (KVH), glued-laminated timber (BSH), laminated veneer lumber (LVL)
- For non-weathered areas
-
Características
- Carbon steel with zinc-plated surface and dry lubricant
- Countersunk (STR) head with milling ribs on the underside makes it easier to countersink the head for surface-fixed installation
- The end mill at the transition to the non-threaded fastener shaft reduces the installation torque and simplifies the installation process
- Full and partial thread
- Optimised thread geometry for improved prevention of screw over-tightening with short screws and accelerated processing with long screws
- T-FAST® Plus point geometry for fast point biting and efficient reduction of wood splitting
-
Datos técnicos
- Diameter: 4,0 - 8,0
- Diameter countersunk: 8,0 - 16,0
- Drive: TX20 - TX40
- Shaft mill
Filtro
Filtros seleccionados
| Descripción | Nº de artículo | Diámetro mm | Longitud mm | longitud de la rosca mm | Longitud cabeza mm | Accionamiento | Unidades |
|---|---|---|---|---|---|---|---|
| JW2-2-Plus-STR-4.0X25/18-V S TX20 | 3820000373 | 4.0 | 25.0 | 18.0 | 8.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.0X30/23-V S TX20 | 3820000374 | 4.0 | 30.0 | 23.0 | 8.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.0X35/28-V S TX20 | 3820000375 | 4.0 | 35.0 | 28.0 | 8.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.0X40/33-V S TX20 | 3820000376 | 4.0 | 40.0 | 33.0 | 8.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.0X35/24-V S TX20 | 3820000377 | 4.0 | 35.0 | 24.0 | 8.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.0X45/25-V S TX20 | 3820000379 | 4.0 | 45.0 | 25.0 | 8.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.0X40/24-V S TX20 | 3820000378 | 4.0 | 40.0 | 24.0 | 8.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.0X50/30-V S TX20 | 3820000380 | 4.0 | 50.0 | 30.0 | 8.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.0X60/35-V S TX20 | 3820000381 | 4.0 | 60.0 | 35.0 | 8.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.0X70/40-V S TX20 | 3820000382 | 4.0 | 70.0 | 40.0 | 8.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.5X25/18-V S TX20 | 3820000383 | 4.5 | 25.0 | 18.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.5X30/23-V S TX20 | 3820000384 | 4.5 | 30.0 | 23.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.5X35/28-V S TX20 | 3820000385 | 4.5 | 35.0 | 28.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.5X40/33-V S TX20 | 3820000386 | 4.5 | 40.0 | 33.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.5X45/38-V S TX20 | 3820000387 | 4.5 | 45.0 | 38.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.5X50/43-V S TX20 | 3820000388 | 4.5 | 50.0 | 43.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.5X40/24-V S TX20 | 3820000389 | 4.5 | 40.0 | 24.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.5X45/25-V S TX20 | 3820000390 | 4.5 | 45.0 | 25.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.5X50/30-V S TX20 | 3820000391 | 4.5 | 50.0 | 30.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.5X60/35-V S TX20 | 3820000392 | 4.5 | 60.0 | 35.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.5X70/40-V S TX20 | 3820000393 | 4.5 | 70.0 | 40.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-4.5X80/40-V S TX20 | 3820000394 | 4.5 | 80.0 | 40.0 | 9.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-5.0X40/33-V S TX20 | 3820000395 | 5.0 | 40.0 | 33.0 | 10.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-5.0X50/43-V S TX20 | 3820000396 | 5.0 | 50.0 | 43.0 | 10.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-5.0X60/53-V S TX20 | 3820000397 | 5.0 | 60.0 | 53.0 | 10.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-5.0X70/63-V S TX20 | 3820000398 | 5.0 | 70.0 | 63.0 | 10.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-5.0X50/30-V S TX20 | 3820000399 | 5.0 | 50.0 | 30.0 | 10.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-5.0X60/35-V S TX20 | 3820000400 | 5.0 | 60.0 | 35.0 | 10.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-5,0X70/40-V S TX20 | 3820000401 | 5.0 | 70.0 | 40.0 | 10.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-5.0X80/40-V S TX20 | 3820000402 | 5.0 | 80.0 | 40.0 | 10.0 | TX20 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-5.0X90/45-V S TX20 | 3820000403 | 5.0 | 90.0 | 45.0 | 10.0 | TX20 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-5.0X100/60-V S TX20 | 3820000404 | 5.0 | 100.0 | 60.0 | 10.0 | TX20 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-5.0X120/70-V S TX20 | 3820000405 | 5.0 | 120.0 | 70.0 | 10.0 | TX20 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-6.0X50/30-V S TX30 | 3820000406 | 6.0 | 50.0 | 30.0 | 12.0 | TX30 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-6.0X60/35-V S TX30 | 3820000407 | 6.0 | 60.0 | 35.0 | 12.0 | TX30 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-6.0X70/40-V S TX30 | 3820000408 | 6.0 | 70.0 | 40.0 | 12.0 | TX30 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-6.0X80/40-V S TX30 | 3820000409 | 6.0 | 80.0 | 40.0 | 12.0 | TX30 | 200 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-6.0X90/45-V S TX30 | 3820000410 | 6.0 | 90.0 | 45.0 | 12.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-6.0X100/60-V S TX30 | 3820000411 | 6.0 | 100.0 | 60.0 | 12.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-6.0X120/70-V M TX30 | 3820000412 | 6.0 | 120.0 | 70.0 | 12.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-6.0X140/70-V M TX30 | 3820000413 | 6.0 | 140.0 | 70.0 | 12.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-6.0X160/70-V M TX30 | 3820000414 | 6.0 | 160.0 | 70.0 | 12.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-6.0X180/70-V M TX30 | 3820000415 | 6.0 | 180.0 | 70.0 | 12.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-6.0X200/70-V M TX30 | 3820000416 | 6.0 | 200.0 | 70.0 | 12.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-6.0X220/70-V M TX30 | 3820000417 | 6.0 | 220.0 | 70.0 | 12.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-6.0X240/70-V M TX30 | 3820000418 | 6.0 | 240.0 | 70.0 | 12.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-6.0X260/70-V M TX30 | 3820000419 | 6.0 | 260.0 | 70.0 | 12.0 | TX30 | 100 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-8.0X120/80-V M TX40 | 3820000420 | 8.0 | 120.0 | 80.0 | 16.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-8.0X140/80-V M TX40 | 3820000421 | 8.0 | 140.0 | 80.0 | 16.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-8.0X160/80-V M TX40 | 3820000422 | 8.0 | 160.0 | 80.0 | 16.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-8.0X180/80-V M TX40 | 3820000423 | 8.0 | 180.0 | 80.0 | 16.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-8.0X200/80-V M TX40 | 3820000424 | 8.0 | 200.0 | 80.0 | 16.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-8.0X220/80-V M TX40 | 3820000425 | 8.0 | 220.0 | 80.0 | 16.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-8.0X240/80-V M TX40 | 3820000426 | 8.0 | 240.0 | 80.0 | 16.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-8.0X260/80-V M TX40 | 3820000427 | 8.0 | 260.0 | 80.0 | 16.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-8.0X280/80-V M TX40 | 3820000428 | 8.0 | 280.0 | 80.0 | 16.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-8.0X300/80-V M TX40 | 3820000429 | 8.0 | 300.0 | 80.0 | 16.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-8.0X320/80-V M TX40 | 3820000430 | 8.0 | 320.0 | 80.0 | 16.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-8.0X340/80-V M TX40 | 3820000431 | 8.0 | 340.0 | 80.0 | 16.0 | TX40 | 50 |
Datos técnicos
|
|||||||
| JW2-2-Plus-STR-8.0X360/80-V M TX40 | 3820000432 | 8.0 | 360.0 | 80.0 | 16.0 | TX40 | 50 |
Datos técnicos
|
