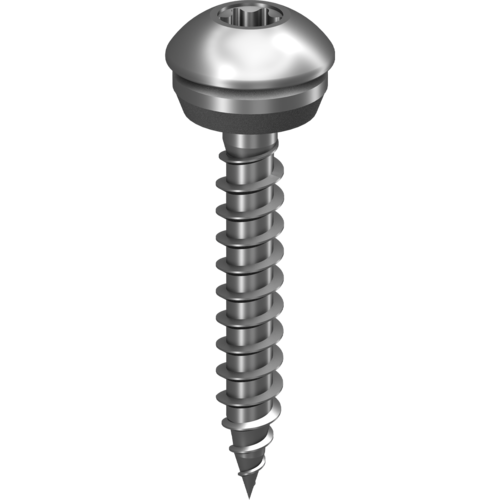

EJOFAST® self-drilling screw JF3-FR-Plus-4.9
Especificaciones
-
Aplicaciones
- Fastening profiled steel or aluminium sheets to timber substructures
-
Características
- A2 stainless steel with hardened steel point
- Stainless steel sealing washer
- Pre-assembled sealing washer
- Reduced swarf fastening
- Assembly without pre-drilling
- Non-skid application
- High load-bearing capacity
- With truss head
-
Datos técnicos
- Diameter: 4.9 mm
- Drill capacity tI + tII: 0.8 mm
- Drive: Hexalobular drive T25
- Installation rotation speed: max. 1500 rpm
Filtro
Filtros seleccionados
| Descripción | Nº de artículo | Ø Arandela mm | Longitud mm | Unidades |
|---|---|---|---|---|
| JF3-FR-Plus-4,9x35 E11 RAL 7016 | 3333692025 | 11 | 35.0 | |
Datos técnicos
|
||||
| JF3-FR-Plus-4,9x35 E11 RAL 9002 | 3333692082 | 11 | 35.0 | |
Datos técnicos
|
||||
| JF3-FR-Plus-4,9x35 E11 RAL 9006 | 3333692084 | 11 | 35.0 | |
Datos técnicos
|
||||
| JF3-FR-Plus-4,9x35 E11 RAL 9007 | 3333692220 | 11 | 35.0 | |
Datos técnicos
|
