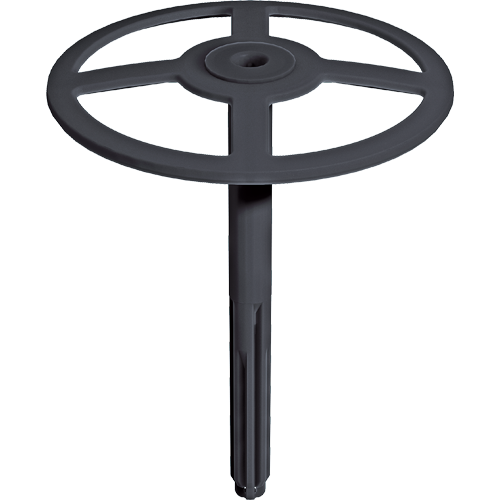

EJOT® insulation support anchor DH individual components

Applications

• For fixing insulating material in the rainscreen facades to all substrates

Benefits

• Prevents "quilt effect" (identations in the insulation) due to retrofitting of the washer
• Prevents gaping of the joints between the individual insulating panels at the joining edges
• Packing and handling volume is reduced by over 60% compared to one-part insulation support anchors
• Installation depth limiter guarantees defined installation, independent of the substrate
• Process reliable installation even with thick insulation boards

Notice

For the installation of two-ply insulation, additional stress plates are required. The practicability depends on the respective insulation properties and needs to be tested on site. Rotary hole drilling is obligatory in aerated concrete and perforated brick masonry.

Características

• Requirement: 5 pcs. per m²
• Easy installation with no additional expansion element
• Parts can be positioned freely on the shaft
• All-purpose for all building materials

Datos técnicos

Characteristic values

• Plate diameter: 90 mm
• Shaft diameter: 8 mm
• Drill bit diameter: 8 mm
• Drill hole depth ≥ t: 40 mm
• Embedment depth ≥ h_v: 30 mm
• Point thermal transmittance _χ: 0.0001 W/K
• Carrying capacity (pull over washer): 0.2 kN
