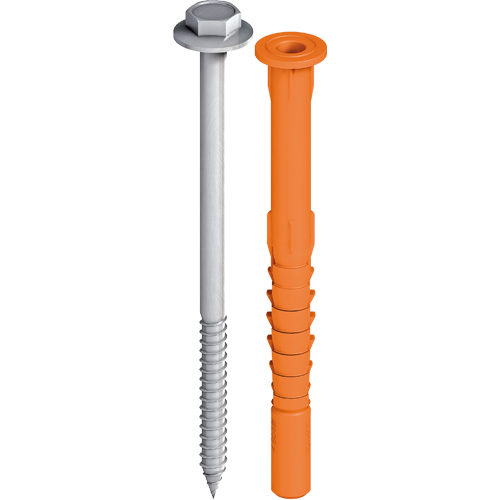

SDP-KB-10S
Especificaciones
-
Aplicaciones
- For fixing metal substructures to gas concrete
- For fixing metal substructures to gas concrete from Laußig and Parchim
Note
Please note approval Z-21-2-967 -
Características
- Hexagon head with flange
- Reliable form-fit due to combined expansion zones
- High embedment stability even in soft gas concrete
- Cr(VI)-free coating
- Thermal and galvanic separation
- Product identification through different sleeve colours
- Fast rotary hole drilling
-
Datos técnicos
CHARACTERISTIC VALUES
- A/F13 hexagon drive
- Drill hole depth ≥ t: 80 mm
- embedment depth ≥ hv: 70 mm
Permitted loads
- Gas concrete PP2 / P3,3 acc. to DIN: 0.3 kN
- Gas concrete ≥ PP4 / P4,4 acc. to DIN: 0.8 kN
- Gas concrete in accordance with TGL Werk Laußig: 0.4 kN
- Gas concrete in accordance with TGL Werk Parchim: 0.2 kN
- Maximum allowable bending moment steel: 11.5 Nm
- Maximum allowable bending moment stainless steel: 13.0 Nm
